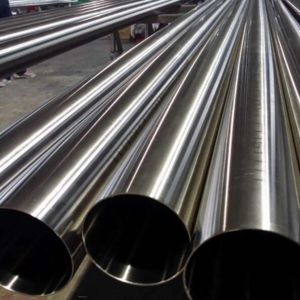

Home > Alloy Steel>ASTM A335 Gr P5 Alloy Steel Seamless Pipe
From the heart of Hamilton, New Zealand, Blundell Pipes and Tubes proudly stands as a trusted manufacturer and supplier of high-performance steel solutions. Among our key offerings is the ASTM A335 Gr P5 alloy steel seamless pipe, a product engineered for demanding industrial environments. We understand that reliability is paramount, which is why our P5 pipes are produced to the highest standards, ensuring you receive a component built for superior strength and exceptional resistance to high temperatures and corrosion, project after project.
The strength of the ASTM A335 Gr P5 pipe comes from its specific composition, primarily a chromium-molybdenum alloy. This blend gives the steel its notable resistance to oxidation and corrosion, especially under high heat. In terms of mechanical performance, this grade is defined by its impressive tensile and yield strength, allowing it to maintain structural integrity under significant pressure. These pipes are heat-treated to enhance their durability, making them capable of handling the strenuous conditions found in high-temperature service.
| Specifications | ASTM A 335 / ASME SA 335 |
| Size | 1/8″NB TO 30″NB IN |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS, UPTO 4″ WALL THICK |
| Length | Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths |
| Form | Round, Square, Rectangular, Hydraulic Etc. |
| Type | Seamless |
| Grade | C % | Mn % | P % | S % | Si % | Cr % | Mo % |
|---|---|---|---|---|---|---|---|
| P5 | 0.05-0.15 | 0.30-0.60 | 0.025 max | 0.025 max | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % |
|---|---|---|---|
| P5 | 415 min | 205 min | 30 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing ASTM A335 Gr P5 Alloy Steel Seamless Pipe from Blundell Pipes and Tubes ensures superior corrosion resistance, excellent thermal conductivity, high strength, and long-lasting performance. Our commitment to quality and precision makes our pipes and tubing ideal for demanding industrial applications.
Blundell Pipes and Tubes is the largest supplier of ASTM A335 Gr P5 Alloy Steel Seamless Pipe in Hamilton, New Zealand. We offer premium-quality, corrosion-resistant pipes and tubing ideal for marine, chemical, and industrial applications, with our reliable delivery and customized solutions to meet diverse client needs.
| NB | Size | OD | 40S | 5S | 10S | S10 | S20 | S40 | S60 | XS/80S | S80 | S100 | S120 | S140 | S160 | XXS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 1/8” | 10.29 | 1.2 | 1.73 | 2.41 | ||||||||||||
| 1/4” | 13.72 | 1.7 | 2.24 | 3.02 | ||||||||||||
| 3/8” | 17.15 | 1.7 | 2.31 | 3.2 | ||||||||||||
| 15 | 1/2” | 21.34 | 2.8 | 1.7 | 2.1 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | ||||||
| 20 | 3/4” | 26.67 | 2.9 | 1.7 | 2.1 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | ||||||
| 25 | 1” | 33.4 | 3.4 | 1.7 | 2.8 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | ||||||
| 32 | 1 1/4” | 42.16 | 3.6 | 1.7 | 2.8 | 3.56 | 4.85 | 4.85 | 6.35 | 9.7 | ||||||
| 40 | 1 1/2” | 48.26 | 3.7 | 1.7 | 2.8 | 3.68 | 5.08 | 5.08 | 7.14 | 10.2 | ||||||
| 50 | 2” | 60.33 | 3.9 | 1.7 | 2.8 | 3.91 | 5.54 | 5.54 | 9.74 | 11.1 | ||||||
| 65 | 2 1/2” | 73.03 | 5.2 | 2.1 | 3.1 | 5.16 | 7.01 | 7.01 | 9.53 | 14 | ||||||
| 80 | 3” | 88.9 | 5.5 | 2.1 | 3.1 | 5.49 | 7.62 | 7.62 | 11.1 | 15.2 | ||||||
| 90 | 3 1/2” | 101.6 | 5.7 | 2.1 | 3.1 | 5.74 | 8.08 | 8.08 | ||||||||
| 100 | 4” | 114.3 | 6 | 2.1 | 3.1 | 6.02 | 8.56 | 8.56 | 11.1 | 13.5 | 17.1 | |||||
| 125 | 5” | 141.3 | 6.6 | 2.8 | 3.4 | 6.55 | 9.53 | 9.53 | 12.7 | 15.9 | 19.1 | |||||
| 150 | 6” | 168.3 | 7.1 | 2.8 | 3.4 | 7.11 | 10.97 | 11 | 14.3 | 18.3 | 22 | |||||
| 200 | 8” | 219.1 | 8.2 | 2.8 | 3.8 | 6.4 | 8.18 | 10.3 | 12.7 | 12.7 | 15.1 | 19.3 | 20.6 | 23 | 22.2 | |
| 250 | 10” | 273.1 | 9.3 | 3.4 | 4.2 | 6.4 | 9.27 | 12.7 | 12.7 | 15.1 | 19.3 | 21.4 | 25.4 | 28.6 | 25.4 | |
| 300 | 12” | 323.9 | 9.5 | 4 | 4.6 | 6.4 | 10.3 | 14.3 | 12.7 | 17.5 | 21.4 | 25.4 | 28.6 | 33.3 | 25.4 | |
| 350 | 14” | 355.6 | 9.5 | 4 | 4.8 | 6.4 | 7.9 | 11.1 | 15.1 | 12.7 | 19.1 | 23.8 | 27.8 | 31.8 | 35.7 | |
| 400 | 16” | 406.4 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 12.7 | 16.7 | 12.7 | 21.4 | 26.2 | 31 | 36.5 | 40.5 | |
| 450 | 18” | 457.2 | 9.5 | 4.2 | 4.8 | 6.4 | 7.9 | 14.3 | 19.1 | 12.7 | 23.8 | 29.4 | 34.9 | 39.7 | 45.2 | |
| 500 | 20” | 508 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 15.1 | 20.6 | 12.7 | 26.2 | 32.5 | 38.1 | 44.5 | 50 | |
| 550 | 22” | 558.8 | 9.5 | 4.8 | 5.5 | 6.4 | 9.5 | 22.2 | 12.7 | 28.6 | 34.9 | 41.3 | 47.6 | 54 | ||
| 600 | 24” | 609.6 | 9.5 | 5.5 | 6.4 | 6.4 | 9.5 | 17.5 | 24.6 | 12.7 | 31 | 38.9 | 46 | 52.4 | 59.5 | |
| 650 | 26” | 660.4 | 9.5 | 7.9 | 13 | 12.7 | ||||||||||
| 700 | 28” | 711.2 | 9.5 | 7.9 | 13 | 12.7 | ||||||||||
| 750 | 30” | 762 | 9.5 | 6.4 | 7.9 | 7.9 | 13 | 12.7 | ||||||||
| 800 | 32” | 812.8 | 9.5 | 7.9 | 13 | 17.5 | 12.7 | |||||||||
| 850 | 34” | 863.6 | 9.5 | 7.9 | 13 | 17.5 | 12.7 | |||||||||
| 900 | 36” | 914.4 | 9.5 | 7.9 | 13 | 19.1 | 12.7 |
Yes, custom sizes are available for ASTM A335 Gr P5 Alloy Steel Seamless Pipe to meet specific requirements. These pipes can be tailored for various industrial applications. For more details, contact us at sales@blundellpipes.co.nz.
These pipes are extensively utilized in industries that require robust, heat-resistant, and durable piping solutions. In power generation, they find their place in boilers, superheaters, and heat exchangers that operate under extreme temperatures. The petrochemical and chemical industries use them for process piping, reactors, and high-temperature transport lines. The oil and gas sector depends on them for refining, transportation, and high-pressure pipelines. With their outstanding mechanical properties, heat resistance, and long-term reliability, these pipes are a trusted choice for critical applications.
