Home > Stainless Steel Tubing > Stainless Steel 202 Tubing

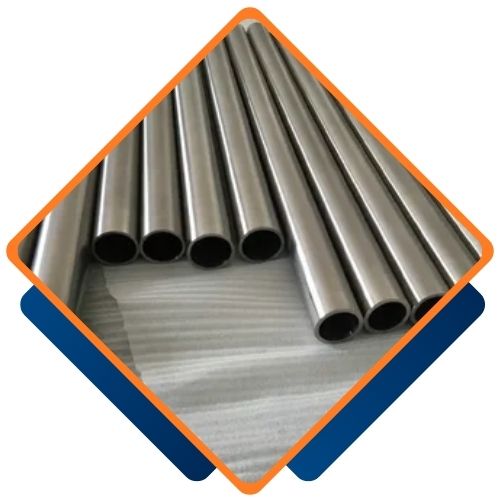

Located in the heart of Hamilton, New Zealand, Blundell Pipes and Tubes has built a reputation as a trusted local source for high-quality metal products. We take pride in offering Stainless Steel 202 tubing, a versatile and cost-effective solution for a wide range of projects. Our team understands the demands of local industry and is dedicated to providing not just the product, but the expert support to help your venture succeed, ensuring you get the right materials for durability and performance.
Stainless Steel 202 boasts a thoughtful composition, primarily chromium, manganese, and nickel, which gives it a great balance of properties. This blend creates a material with excellent resistance to corrosion, making it a sturdy choice for many environments. It also possesses good mechanical strength and formability, allowing it to be fabricated into various shapes and structures without losing its inherent toughness, offering reliable performance for its intended uses.
Standard | ASTM, AISI, GB, JIS, customers’ requests available |
Size | Round Tube: OD: 16-119mm or customized |
Thickness | 0.25mm-3.0mm |
Length | 6m or according to customers’ request |
Sample | Free sample is available, but freight should be paid by you |
Tolerance
| Outer diameter: ±0.2mm |
Thickness: ±0.05mm | |
Length: ±0.5mm | |
Ends | In plain end or bevelled ends or as your requirements |
Welding Line Type | ERW (Electrical Resistance Weld) |
Finishing
| A. Sanded |
B. Gloss #400,Mirror #600 – #1000 | |
C. Brushed | |
D. Wood Grain | |
E. Embossed, Threaded | |
Application | Decorations, constructions, food industry, etc. |
Certification | ISO, SGS |
Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |

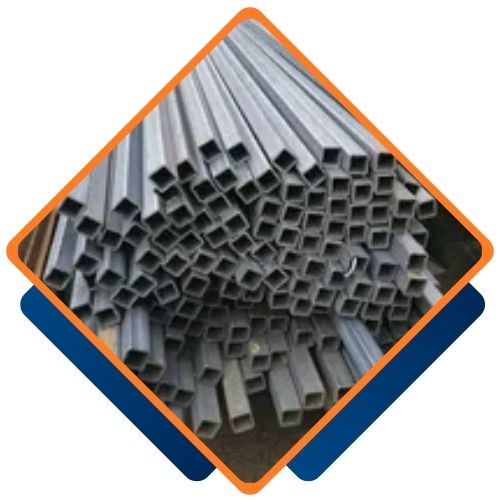

Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
Length | 6m or according to customer’s request |
Outer diameter | 6.35-219mm |
Tolerance | Outer diameter :±0.2mm |
Thickness :±0.02mm | |
Length :±0.5mm | |
Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Element | Content (%) |
|---|---|
| Iron, Fe | 72 |
| Chromium, Cr | 16.0 – 18.0 |
| Manganese, Mn | 5.50 – 7.50 |
| Nickel, Ni | 3.50 – 5.50 |
| Silicon, Si | 1.0 |
| Nitrogen, N | 0.25 |
| Carbon, C | 0.15 |
| Type | Yield Strength 0.2% offset (KSI) | Tensile Strength (KSI) | % Elongation (2″ Gauge length) | Hardness Rockwell |
|---|---|---|---|---|
| SS 201 Ann | 38 min. | 75 min. | 40% min. | HRB 95 max. |
| SS 201 ¼ Hard | 75 min. | 125 min. | 25.0 min. | 25 – 32 HRC (typical) |
| SS 201 ½ Hard | 110 min. | 150 min. | 18.0 min. | 32 – 37 HRC (typical) |
| SS 201 ¾ Hard | 135 min. | 175 min. | 12.0 min. | 37 – 41 HRC (typical) |
| SS 201 Full Hard | 145 min. | 185 min. | 9.0 min. | 41 – 46 HRC (typical) |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Stainless Steel 202 Tubing from Blundell Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Blundell Pipes and Tubes, a leading supplier of Stainless Steel 202 Tubing in Hamilton, New Zealand, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Blundell Pipes and Tubes, we provide custom sizes of Stainless Steel 202 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
You’ll find **Stainless Steel 202 Tubing** commonly used in construction, interior design, and architectural projects for handrails, balustrades, and decorative frameworks. It’s also utilized in automotive parts, kitchen equipment, and furniture due to its corrosion resistance and appealing finish. In industrial settings, it serves in process piping, conveyor systems, and general engineering structures where moderate strength and durability are key. Its ease of fabrication and welding makes it ideal for custom designs and installations.
